Rainwater Shoes
The outlet fitting at the foot of a rainwater downpipe, which turns the water away from the wall and onto a channel or gully.
Downpipe outlet that turns water from the wall.
Large-grate drains for open areas.
Stainless steel slot drains.
What a rainwater shoe does

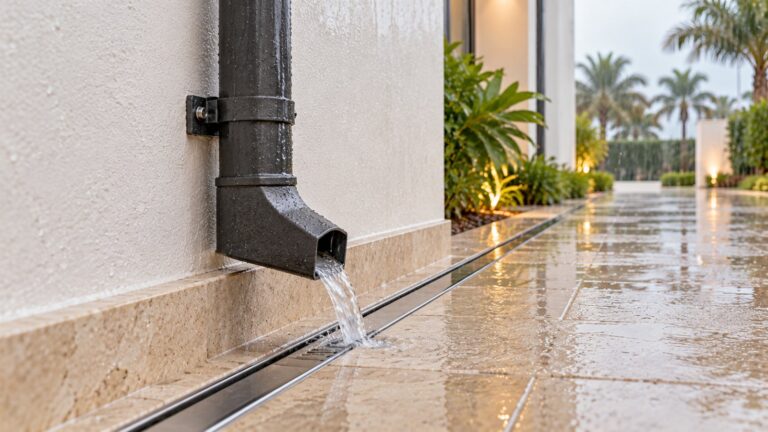

Where a downpipe ends above the ground instead of connecting into an underground drain, a rainwater shoe is fitted at the bottom. It turns the water away from the building, so it does not soak the wall or wash out the paving at its base. The water then runs to a channel, a gully or a soakaway.
What we supply
| Product | Details |
|---|---|
| Cast iron rainwater shoes | Strong and impact-resistant, for exposed walls and car parks |
| Stainless steel rainwater shoes | AISI 304/316, for modern façades and coastal sites |
| Sizes | To suit your downpipe diameter |
| Fixing | Wall-fixed, to suit the downpipe |
Where rainwater shoes are used
- Villas and townhouses, where downpipes run down the outside walls
- Car park decks and podiums
- Industrial buildings and warehouses
- Schools, mosques and community buildings
- Downpipes that discharge onto a landscape drainage channel
Rainwater shoe or direct connection?
- Rainwater shoe: the downpipe discharges at ground level, onto a channel or gully. It is easy to inspect and clear.
- Direct connection: the downpipe goes straight into an underground drain. Use a rodding eye or access fitting for cleaning.
Designing for UAE storms
UAE rain comes in short, heavy bursts. Make sure the water leaving the shoe has somewhere to go, such as a channel, a gully or an area drain. Otherwise it floods the paving next to the building. See Area Drains and Gully & Sand Traps.
What to send us for a quote
Quantities, downpipe diameter and material, wall finish, material of the shoe, and photos or drawings.
Typical applications
Frequently asked questions
What is a rainwater shoe?
Cast iron or stainless steel?
What size do I need?
Where should the water go?
Do you supply roof drains too?
Do you deliver outside Dubai?
Send us quantities, sizes and drawings or site photos and we will reply with options and a price. Request a quote.
