Floor Drains & Linear Shower Drains Stainless Steel Range
AISI 316 stainless steel floor drains, cleanouts and linear shower channels for bathrooms, kitchens and wet areas.Stainless Steel Floor Drains & Shower Drains in Dubai
Alphatek supplies a complete range of stainless steel floor drains, floor cleanouts and linear shower drains, supplied for residential, hospitality, commercial and industrial projects across the UAE.
The range covers square and round floor drains with lids, two-piece sets, recessed tile-insert drains, drains with integrated traps and hinged covers, and linear shower channels from 300 mm to 1200 mm long. Bodies are made from AISI 316 stainless steel as standard (AISI 304 optional), in matte or mirror finish, with removable gratings for easy cleaning.
Key Features
Linear Shower Drain Sizes
| Channel | Length A (mm) | Grate length B (mm) | Channel height (mm) | Outlet height (mm) | Outlet Ø (mm) | Width (mm) |
|---|---|---|---|---|---|---|
| 300 mm | 300 | 296 | 25 | 40 | 50 | 80 |
| 450 mm | 450 | 446 | 25 | 40 | 50 | 80 |
| 600 mm | 600 | 596 | 25 | 40 | 50 | 80 |
| 900 mm | 900 | 896 | 25 | 40 | 50 | 80 |
| 1200 mm | 1200 | 1196 | 25 | 40 | 50 | 80 |
Material AISI 316 (304 optional). Finish matte (standard) / mirror (optional). Odour trap optional. Floor drains available in 100, 150 and 200 mm sizes – contact us for full data sheets.
Typical Applications
Our Product Range
Square stainless steel floor drain with round slotted grate and screw-fixed lid.

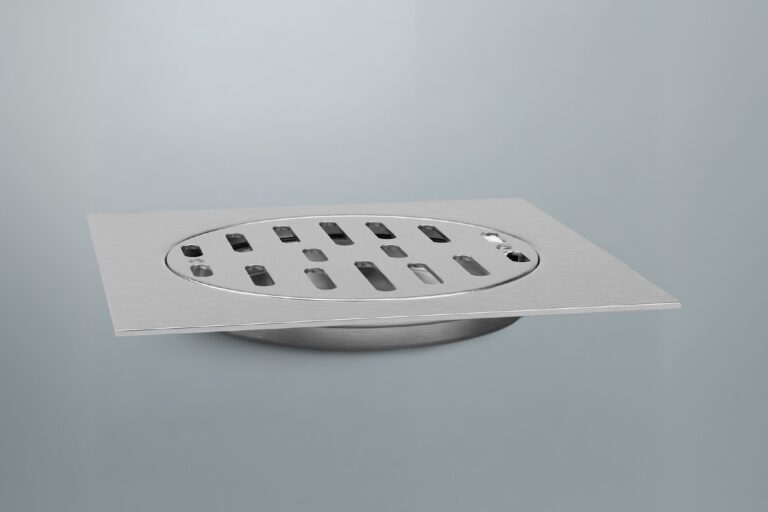

Two-piece stainless steel floor drain set with removable slotted grate.

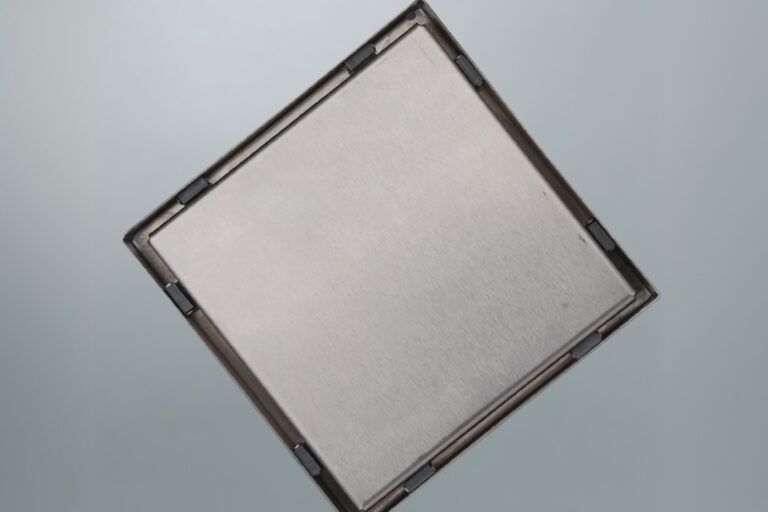

Recessed tray takes the floor tile for an almost invisible drain.
Stainless steel shower channel, 300–1200 mm, with square-pattern grate and push-fit outlet.

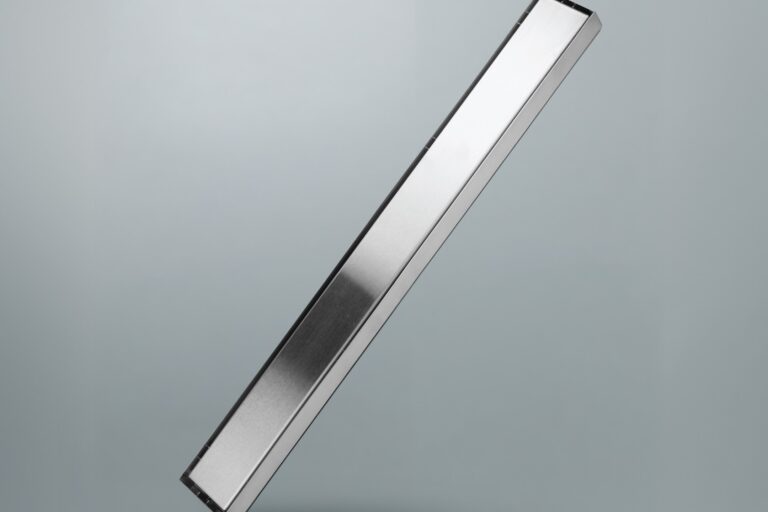

Tile-insert linear channel for walk-in showers with a seamless look.

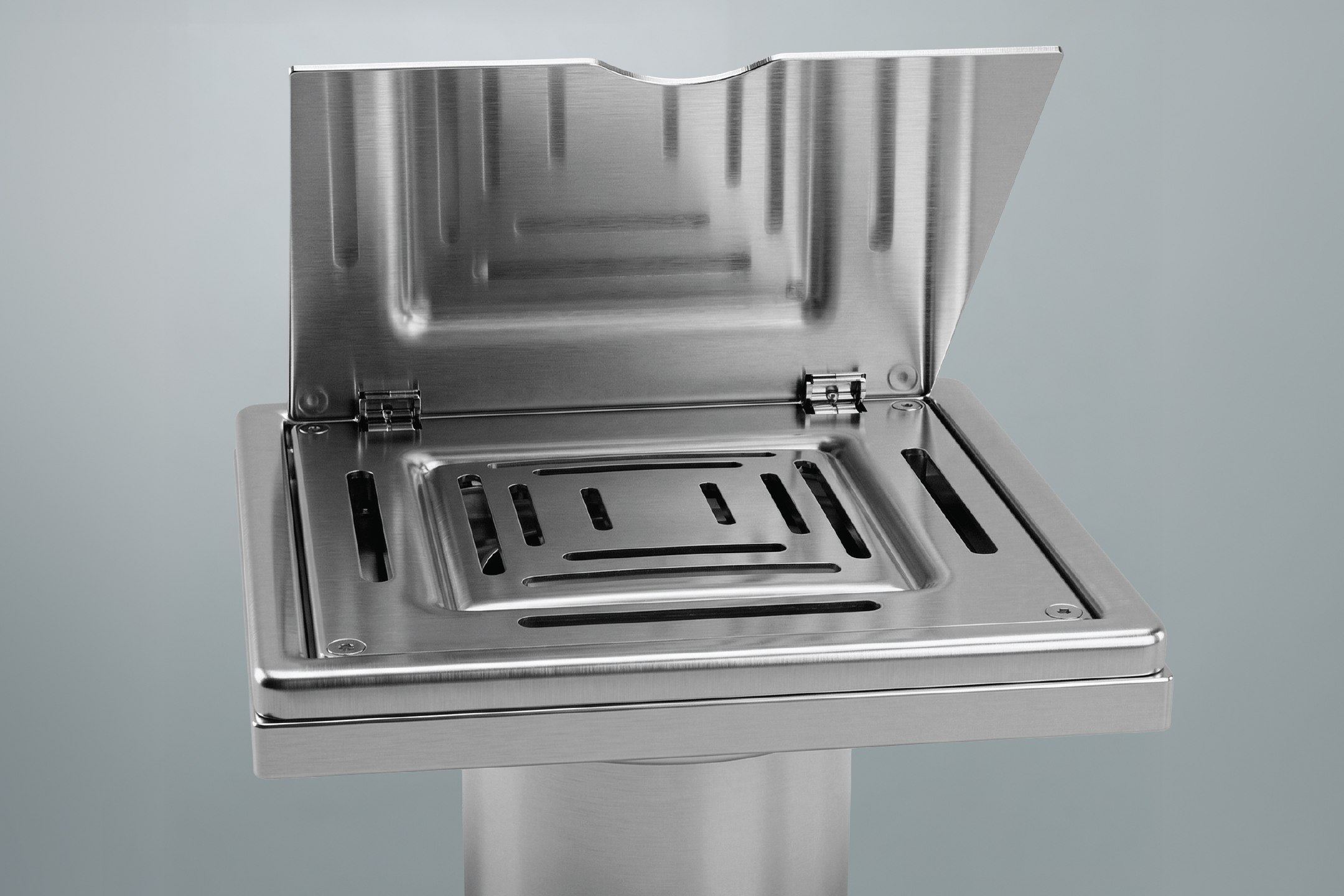

Stainless steel floor drain with hinged cover for areas needing frequent access.
Full data sheets, sizes and submittal documents are available on request for consultant approval.
Floor drain & linear shower drain product pages
Why Choose Alphatek
Choosing a floor drain by area
| Area | Suggested drain |
|---|---|
| Bathrooms | Square stainless steel drain with odour trap |
| Walk-in showers | Linear shower drain or tile-insert drain |
| Balconies, terraces | Drain with a side or low-height outlet |
| Commercial kitchens | Larger drain with removable basket |
| Plant rooms, premium areas | Nickel bronze drain with cast iron body |
Nickel bronze option
Premium nickel bronze floor drains with cast iron bodies, for high-end residential, hospitality and mechanical rooms.
Installation tips
- Make the floor fall towards the drain
- Bond the waterproofing membrane to the drain flange
- Set the grate level with the tile
- Fill the trap with water after installation
What to send for a quote
- Quantity and sizes
- Outlet size and direction
- Grate type and finish
Floor drain supplier in Dubai & the UAE
Alphatek supplies stainless steel 304/316 floor drains, tile-insert drains and linear shower drains for villas, apartments, hotels and commercial kitchens in Dubai and across the UAE. Tell us the quantity, sizes, outlet type and finish and we will reply with options and a price.
Frequently Asked Questions
What material are your floor drains made from?
What lengths of linear shower drain are available?
Do the drains include an odour trap?
Can the drain be hidden under tiles?
Do you provide technical submittals?
Related: Floor Cleanouts · Roof Drains · Planter & Balcony Drains · Commercial Kitchen Floor Drains · SS Gullies & Floor Traps · Basement Drainage · Floor Drain with Lid · Hinged Cover Floor Drain · Tile-Insert Floor Drain · Two-Piece Floor Drain · Linear Shower Drain – Square Grate · Tile-Insert Linear Drain · Floor Drains Saudi Arabia · Oman · Qatar · Kuwait · Bahrain
Need floor drains or shower channels for your project?
Share your drawings or quantities – we will propose the right models and send a quotation.
