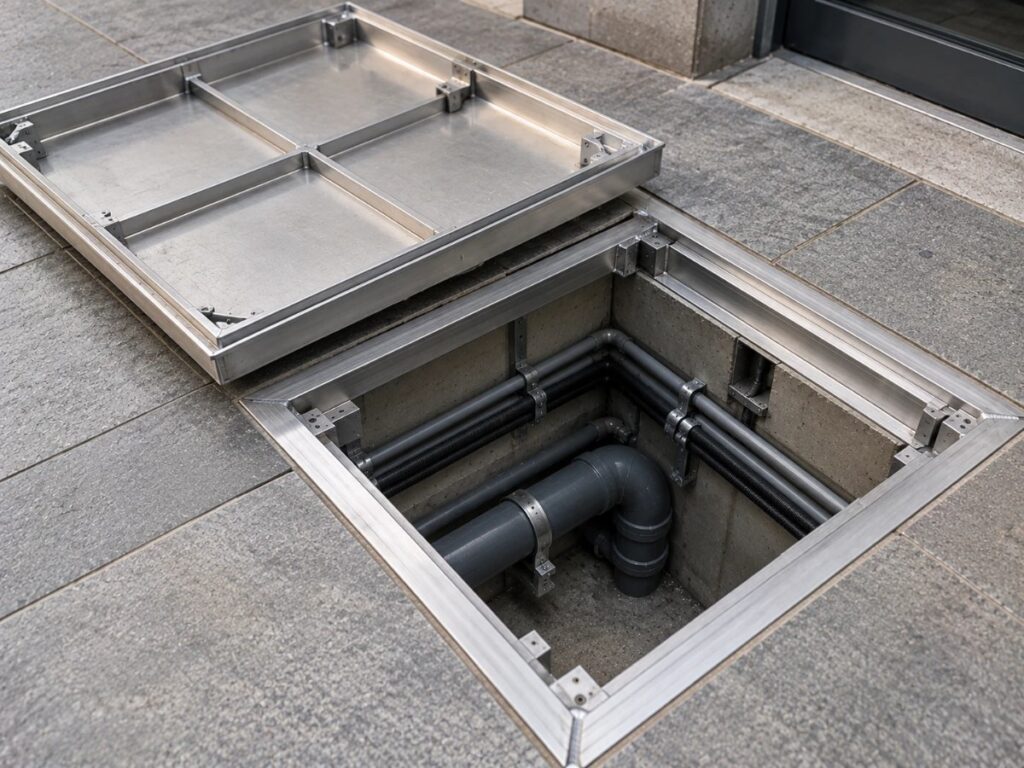

Lightweight, corrosion-free aluminium recessed manhole cover with a 600 × 600 mm clear opening and double seal. The tray takes tiles, marble or screed, so the cover sits flush with the finished floor – ideal for buildings, podiums and terraces in Dubai and the UAE.
Technical specifications
| Clear opening | 600 × 600 mm |
|---|---|
| Material | Aluminium tray and frame |
| Recess depth | 30 mm or 70 mm |
| Duty | Light duty or heavy duty |
| Seal | Double sealed |
| Load class | Pedestrian (EN 124 A15 / B125); heavy-duty version on request |
Features
- Much lighter than cast iron or steel – easy to lift with key lifters
- Will not rust – suits wet areas, podiums and coastal projects
- 30 mm or 70 mm recess to match tile, stone or screed thickness
- Double seal blocks odours, water and dust
Typical applications
- Building lobbies and corridors
- Podium and roof terraces
- Swimming pool surrounds
- Villas and residential towers
Frequently asked questions
Which recess depth do I need?
Use 30 mm for tiles and thin stone, 70 mm for thicker stone, pavers or screed. Send your floor build-up and we will confirm.
Can cars drive over it?
Standard covers are for pedestrian areas. Ask for the heavy-duty version where light vehicles cross; for roads use ductile iron.
Request a quotation
Send the size, quantity, finish and delivery location to sales@alphatek.ae, call +971 54 466 7243 or use our quote form. We usually reply the same or next working day, with drawings and submittals for consultant approval where needed. Supplied to Dubai, Abu Dhabi, Sharjah and across the UAE & GCC.
See the full range: Aluminium manhole covers.
