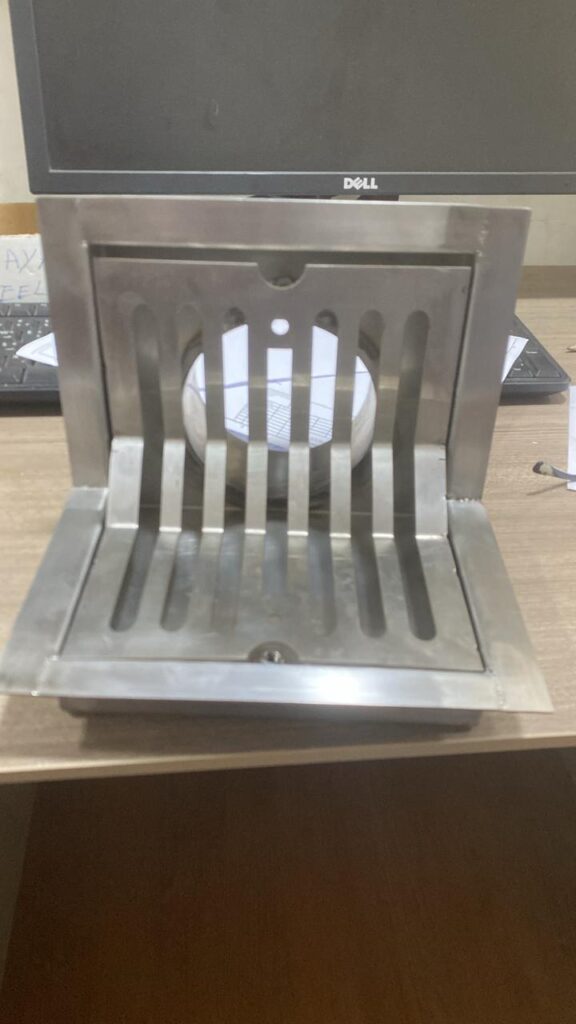

Stainless steel corner drains sit where the floor meets a wall or parapet. The L-shaped body has a removable slotted grate on both faces, so it collects water running along the floor and down the wall, and discharges through a side outlet in the parapet or wall. Supplied for roof terraces, balconies, podium edges and plant-room corners across Dubai and the UAE.
Specification
| Material | Stainless steel SS 304/316 |
|---|---|
| Body | L-shaped body for floor–wall or floor–parapet junctions |
| Grate | Removable slotted grate, screw-fixed |
| Outlet | Side outlet, e.g. 150 mm; other sizes on request |
| Finish | Satin / brushed |
| Supply | Standard sizes or made to your drawings, with shop drawings for approval |
Where corner drains are used
- Roof terraces and podiums with parapet walls
- Balconies where the outlet must pass through the wall
- Courtyards and planter edges
- Plant rooms and wash-down areas with drainage along the wall
Corner drain, scupper or roof drain?
| Drain | Use it when |
|---|---|
| Corner drain | Water collects at the floor–wall junction and must leave through the wall |
| Scupper drain | An opening through the parapet at roof level – see scupper & parapet drains |
| Roof drain | The outlet goes down through the slab – see roof drains |
Stainless Steel Corner Drains supplier in Dubai & the UAE
Alphatek is a stainless steel corner drains supplier in Dubai, delivering to contractors, consultants and developers in Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah and across the GCC. For the stainless steel corner drains price in the UAE, send us your quantities, sizes and drawings and we will reply with a quotation and delivery time.
Frequently asked questions
Which grade should I choose, SS 304 or SS 316?
SS 316 for roofs, balconies and anywhere near the coast or exposed to chlorides; SS 304 for sheltered indoor areas.
Can the grate be removed for cleaning?
Yes. The slotted grate is screw-fixed and can be removed to clear sand and debris from the outlet.
Can you match our drawing?
Yes. Send the drawing or the wall and slab details and we will supply a corner drain to suit, with a shop drawing for approval.
Request a quotation
Send the size, quantity, finish and delivery location to sales@alphatek.ae, call +971 54 466 7243 or use our quote form. We usually reply the same or next working day, with drawings and submittals for consultant approval where needed. Supplied to Dubai, Abu Dhabi, Sharjah and across the UAE & GCC.
See the full range: Roof drains.
